产品特点

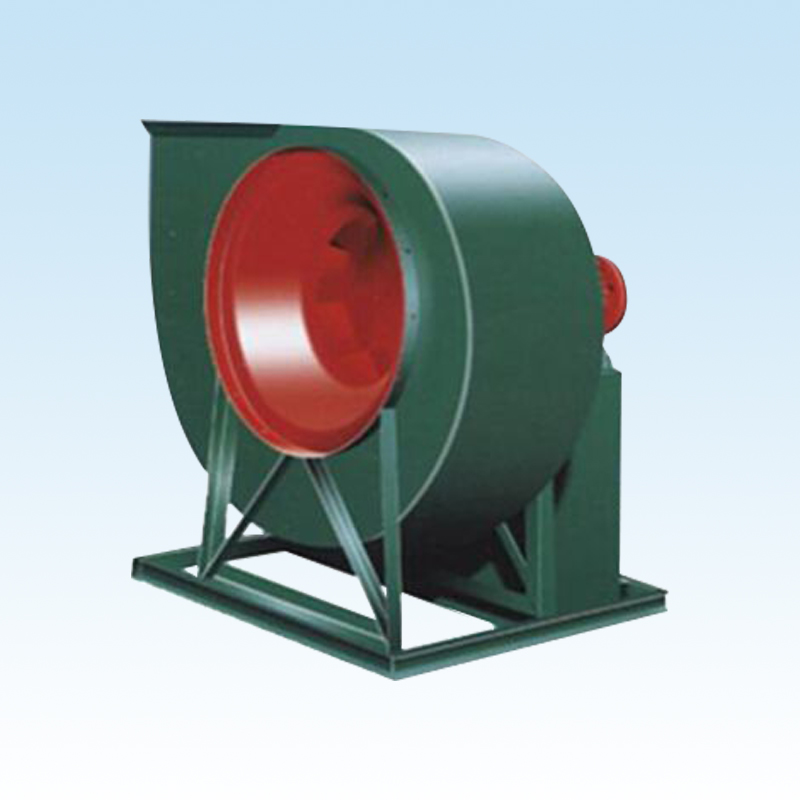

4-79型离心风机可作为一般工厂及大型建筑物的室内通风换气用，输送空气和其他不自然的对人体无害的、对钢材无腐蚀性的气体。气体内不许有粘性物质，所含尘土及硬质颗粒物不大于150mg/m3。气体温度不得超过80℃。 机号：3A～6A、7C～8C、10E～16E流量：990～188000m3/h转速：290～2900r/min全压：176～3334Pa功率：0.5～75KW。
技术性能参数
机号（No.) | 转速r/min | 配用电机(KW-P) | 流量(m3/h) | 全压(Pa) |
2.5A | 2800 | 0.75-2 | 805-1677 | 792-483 |
2.8A | 2900 | 1.5-2 | 1131-2356 | 994-606 |
3.2A | 2900 | 2.2-2 | 1688-3517 | 1300-792 |
1450 | 1.1-4 | 884-1758 | 324-198 | |
3.6A | 2900 | 3-2 | 2664-5268 | 1578-989 |
1450 | 1.1-4 | 1332-2634 | 393-247 | |
4A | 2900 | 5.5-2 | 4012-7419 | 2014-1320 |
1450 | 1.1-4 | 2006-3709 | 501-329 | |
4.5A | 2900 | 7.5-2 | 5712-10562 | 2554-1673 |
1450 | 1.1-4 | 2856-5281 | 634-416 | |
5A | 2900 | 15-2 | 7728-15445 | 3187-2019 |
1450 | 2.2-4 | 3864-7728 | 790-502 | |
5.6A | 1450 | 3-4 | 7062-9885 | 957-759 |
6A | 1450 | 4-4 | 6677-13353 | 724-1139 |
960 | 1.5-6 | 4420-8841 | 498-317 | |
6.3A | 1450 | 7.5-4 | 7729-15485 | 1256-789 |
7.1A | 1450 | 11-4 | 12676-20513 | 1573-1168 |
960 | 3-6 | 8392-13581 | 689-512 | |
6D | 1450 | 4-4 | 6677-13353 | 724-1139 |
6D | 960 | 1.5-6 | 4420-8841 | 317-498 |
8D | 1450 | 18.5-4 | 15826-29344 | 1490-2032 |
8D | 960 | 5.5-6 | 10478-19428 | 651-887 |
8D | 730 | 3-8 | 7968-14773 | 376-512 |
10D | 1450 | 55-4 | 40441-56605 | 2532-3200 |
10D | 960 | 18.5-6 | 26775-37476 | 1104-1395 |
10D | 730 | 7.5-8 | 20360-28497 | 637-805 |
12D | 960 | 45-6 | 46267-64759 | 1593-2013 |
12D | 730 | 18.5-8 | 35182-49244 | 919-1161 |
6C | 2240 | 15-4 | 10314-20628 | 1733-2734 |
6C | 2000 | 11-4 | 9205-18418 | 1380-2176 |
6C | 1800 | 7.5-4 | 8288-17056 | 1116-1760 |
6C | 1600 | 5.5-4 | 7367-14734 | 881-1389 |
6C | 1250 | 3-4 | 5756-11511 | 537-846 |
6C | 1120 | 2.2-4 | 5157-10314 | 431-679 |
6C | 1000 | 2.2-4 | 4605-9209 | 344-541 |
6C | 900 | 1.5-4 | 4144-8288 | 278-438 |
6C | 800 | 1.1-4 | 3684-7367 | 220-346 |
8C | 1800 | 30-2 | 19646-25240 | 3143-3032 |
8C | 1800 | 37-2 | 28105-36427 | 2920-2302 |
8C | 1600 | 22-2 | 17463-22435 | 2478-2390 |
8C | 1600 | 30-2 | 24982-32380 | 1816-2303 |
8C | 1250 | 11-4 | 13643-25297 | 1106-1507 |
8C | 1120 | 7.5-4 | 12224-15705 | 1166-1209 |
8C | 1120 | 11-4 | 17487-22666 | 887-1124 |
8C | 1000 | 5.5-4 | 10914-14022 | 929-963 |
8C | 1000 | 7.5-4 | 15614-20237 | 707-895 |
8C | 900 | 4-4 | 9823-12620 | 752-779 |
8C | 900 | 5.5-4 | 14052-18213 | 572-725 |
8C | 800 | 3-4 | 8732-16190 | 452-615 |
8C | 710 | 2.2-4 | 7749-9956 | 468-485 |
8C | 710 | 3-4 | 11085-14368 | 356-450 |
8C | 630 | 2.2-4 | 6876-12749 | 280-381 |
10C | 1250 | 37-4 | 34863-48797 | 1877-2373 |
10C | 1120 | 30-4 | 31237-43722 | 1505-1902 |
10C | 1000 | 18.5-4 | 27890-39038 | 1199-1514 |
10C | 900 | 15-4 | 25101-35134 | 970-1225 |
10C | 800 | 11-4 | 22312-31230 | 766-967 |
10C | 710 | 7.5-4 | 19082-27717 | 603-761 |
10C | 630 | 5.5-4 | 17571-24594 | 475-599 |
10C | 560 | 4-4 | 15618-21861 | 375-473 |
10C | 500 | 3-4 | 13945-19519 | 299-377 |
12C | 1120 | 75-4 | 53978-75552 | 2172-2746 |
12C | 1000 | 45-4 | 48195-60397 | 1969-2185 |
12C | 1000 | 55-4 | 63953-67457 | 1729-1859 |
12C | 900 | 37-6 | 43375-60712 | 1399-1767 |
12C | 800 | 22-6 | 38556-41973 | 1376-1395 |
12C | 800 | 30-6 | 45391-53966 | 1104-1321 |
12C | 710 | 18.5-6 | 34218-47895 | 869-1097 |
12C | 630 | 15-6 | 30362-42498 | 684-883 |
12C | 560 | 7.5-6 | 26989-29381 | 673-682 |
12C | 560 | 11-6 | 31774-37776 | 540-646 |
12C | 500 | 7.5-6 | 24097-33728 | 430-543 |
12C | 450 | 4-6 | 21687-23610 | 434-440 |
12C | 450 | 5.5-6 | 25532-30356 | 348-417 |
12C | 400 | 3-6 | 19278-26983 | 275-347 |
